Description

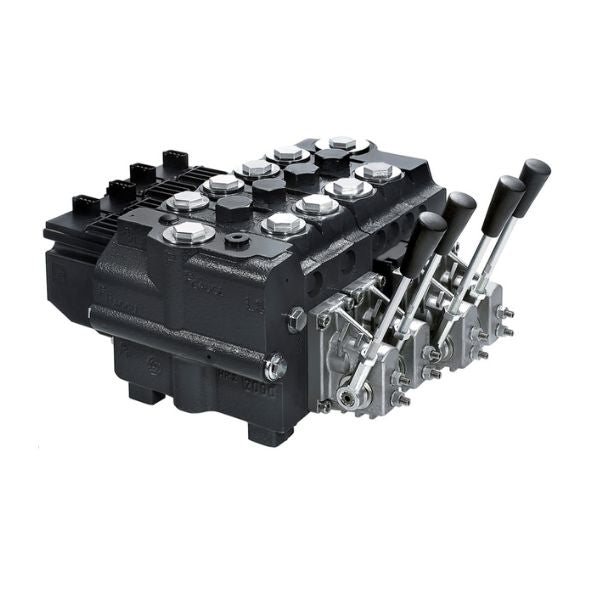

New PVG 100 high flow options tackle the heaviest loads
The new PVG 100 high flow post-compensated valve increases port flow with less effort, using a pump margin of 15 bar (217 psi), while reducing return pressures. PVG 100 high flow options meet the growing demand for high-efficiency, high-flow solutions.
Enjoy the flow-sharing functionality of the PVG 100 — delivering more performance with less horsepower under all conditions.
The flow-sharing technology of the post-compensated, load-sensing PVG 100 is ideal for systems where flow demand regularly pushes supply to its limits.
The modular PVG range is designed for maximum flexibility
Tech Specs
| Parameter | Description | Metric | Imperial |
| Max. pressure | Port P continuous | 350 bar | [5075 psi] |
| Port P intermittent¹ | 400 bar | [5800 psi] | |
| Port A/B² | 350 bar | [5075 psi] | |
| Port T, static / dynamic | 25 bar/40 bar | [365/580 psi] | |
| Port T0, static / dynamic | 5 bar/10 bar | [75/145 psi] | |
| Oil flow, rated (See characteristics) |
Port P (PVPV / PVPVM) | 250/400 l/min | [66/106 US gal/min] |
| Port A/B, with press. comp. @15 bar [217 psi]³ | 180 l/min 240 l/min |
[47.6 US gal/min] [63.4 US gal/min] |
|
| Spool travel, standard | ± 7 mm | [±0.28 in] | |
| Spool travel, float position spool P→A→F | Proportional range | A: 5.5 mm B: 7.0 mm |
A: [±0.22 in] B: [±0.28 in] |
| Float position | 8 mm | [±0.32 in] | |
| Dead band, flow control spools | Standard | ± 1.5 mm | [±0.06 in] |
| Max. spool leakage at 100 bar [1450 psi] and 21 mm²/s [102 SUS] | A/B→T, without shock valve³ | 20/30 cm³/min | [1.22/1.85 in³/min] |
| A/B→T, with shock valve³ | 25/35 cm³/min | [1.53/2.14 in³/min] | |
| Max. internal leakage with pilot operated check valve at 200 bar [2900 psi] and 21 mm²/s [102 SUS] | A/B→T, without shock valve | 1 cm³/min | [0.06 in³/min] |
| A/B→T, with shock valve | 6 cm³/min | [0.37 in³/min] | |
| Oil temperature (inlet temperature) | Recommended temperature | 30 → 60°C | [86 → 140°F] |
| Min. temperature | -30°C | [-22°F] | |
| Max. temperature | +90°C | [194°F] | |
| Oil viscosity | Operating range | 12 - 75 mm²/s | [65 - 347 SUS] |
| Min. viscosity | 4 mm²/s | [39 SUS] | |
| Max. viscosity | 460 mm²/s | [2128 SUS] | |
| Ambient temperature | -30 → +60°C | [-22 → +140°F] | |
| Filtration / Max. contamination (ISO 4406) | 23/19/16 |
¹ Intermittent operation: the permissible values may occur for max. 10% of every minute.
- Modular design, which can be combined with PVG 32
- Post-compensated flow-sharing valve
- Open spool ends for mechanical actuation
- Optimised return flow characteristics, which minimise pressure loss
The Danfoss PVG 100 is suitable for a wide range of mobile hydraulic applications, including
Construction Equipment
Wheel loaders, backhoes, and heavy-duty excavation equipment
Agricultural Machinery
Tractors, harvesters, and high-demand farming equipment
Material Handling Equipment
Telehandlers, forklifts, and lifting machinery
Forestry Equipment
Forestry harvesters, forwarders, and wood processing machinery
Heavy-Duty Mobile Machinery
Applications requiring high flow and load-sharing hydraulic systems
Special Purpose & High-Performance Systems
Machines with multiple functions operating simultaneously under high load demand
