Description

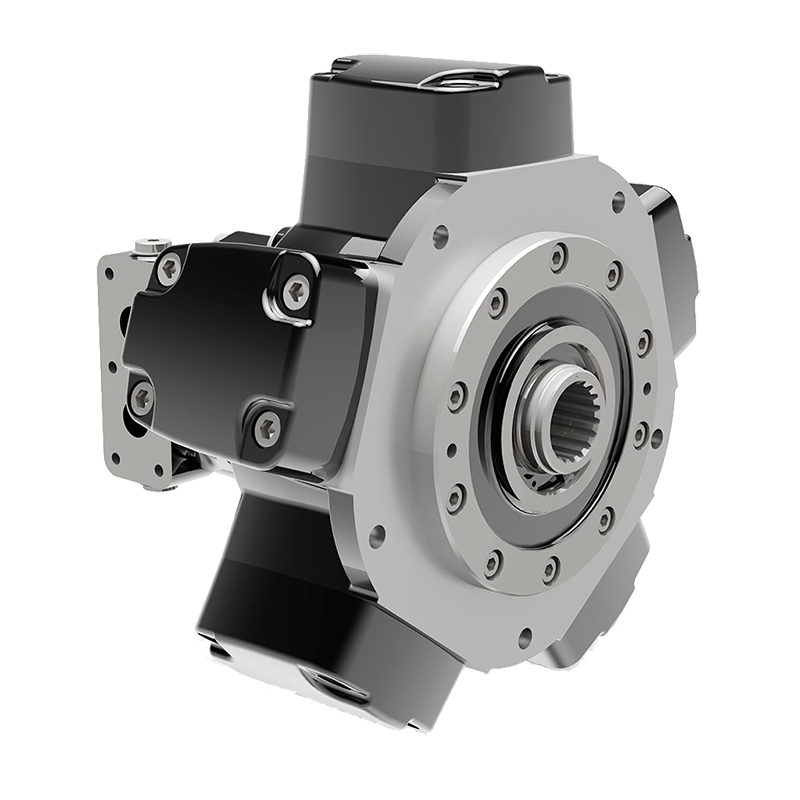

High Torque Radial Piston Fixed Displacement Motors – Series MR
Calzoni Hydraulics fixed displacement hydraulic motors ensure superior reliability and extended lifetime, supported by their high mechanical and volumetric efficiency, high starting torque and advanced low friction and wear technology.
PRODUCT OVERVIEW
Calzoni Hydraulics radial piston fixed displacement hydraulic motors, with unique fluid column technology, have been specifically engineered for high mechanical and volumetric efficiency over a wide range of speed and torque.
MR motors are combined into 10 different frame sizes, corresponding to 36 standard displacements available, from 75 cc/rev to 9000 cc/rev.
High mechanical efficiency: up to 96%
Starting torque: up to 95% of the theoretical value
Outstanding volumetric efficiency: up to 99%
High reliability and very long lifetime
Smooth rotation at very low speed (minimum speed: 0,5-1 rpm)
High accuracy in positioning control
High resistance to thermal shocks
Wide range of operating temperature
Wide range of operating fluids
Reversible operation (motor and pump)
Highly customizable
Full range of parking brakes available
Industrial
Material handling
Marine
Oil&Gas
Mobile
