Description

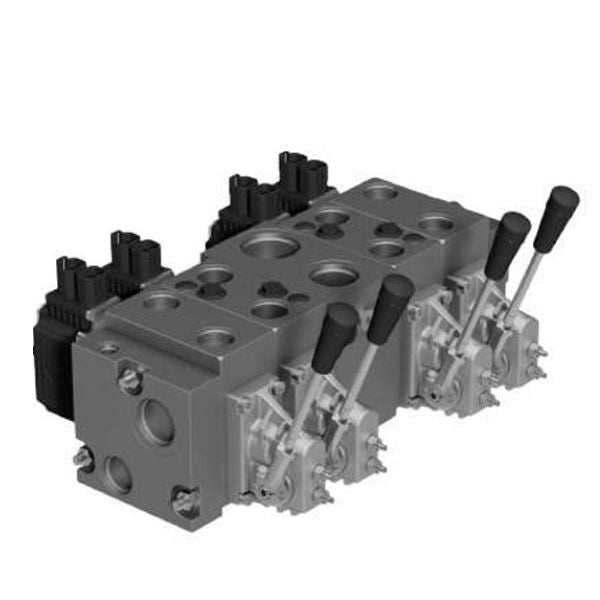

PVG 48 is designed for maximum flexibility, based on proven PVG technology and modularity that simplify the design process, manufacturing and aftermarket activities. PVG 48 enables flow rates of up to 180 L/min work port flow, and the complete actuator portfolio from PVG 32 can be applied, enabling seamless integration with the pre-compensated valve family. It is directly stackable with PVG 16 and PVG 32, and can be stacked with PVG 128/256 via an interface plate.
Tech Specs
| Parameters | Minimum | Recommended Range | Maximum |
| Fluid temperature | -30°C [-22°F] | 30 to 60°C [86 to 140°F] | 90° [194°F] |
| Fluid viscosity | 4 mm²/s [39 SUS] | 12 to 75 mm²/s [65 to 347 SUS] | 460 mm²/s [2128 SUS] |
| Fluid cleanliness (Mechanical actuation) | 23/19/16 (according to ISO 4406) | ||
| Fluid cleanliness (PVE actuation) | 18/16/13 (according to ISO 4406) | ||
| Operating temperature | Ambient: -30 to 60°C [-22 to 140°F] | ||
- Built-in compensator with neutral bleed-off for improved system control and an integrated load-sensing (LS) shuttle network for efficient performance
- Optional shock and anti-cavitation valve functionality (PVLP/PVLA) for enhanced protection
- Optional integrated, adjustable LS A/B pressure relief valves for precise pressure control
- T0 functionality available for added system flexibility
- Optional enhanced anti-cavitation on A port for improved durability
- Seamless integration across the complete PVG product range
The Danfoss PVG 48 is suitable for a wide range of mobile hydraulic applications, including:
Construction Equipment
Excavators, skid steer loaders, compact loaders, and backhoes
Agricultural Machinery
Tractors, sprayers, harvesters, and front-end loader attachments
Material Handling Equipment
Telehandlers, small cranes, lift platforms, and utility vehicles
Municipal & Utility Vehicles
Street sweepers, waste collection trucks, and service vehicles
Forestry Equipment
Harvesters, forwarders, and log handling machinery
Special Purpose & Custom Machinery
Any application requiring compact, modular, load-sensing hydraulic control systems
