Description

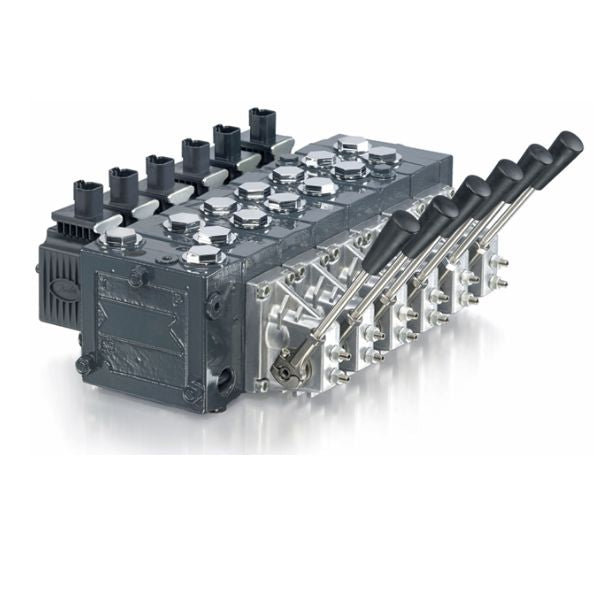

The Danfoss PVG 32 is a high-performance proportional valve group designed for precise and reliable control in mobile hydraulic applications. Built with a modular design, it allows flexible configuration to suit a wide range of machine requirements while maintaining consistent flow and pressure control.
Engineered for durability and efficiency, the PVG 32 delivers smooth operation, excellent load handling, and dependable performance even in demanding environments. Ideal for agricultural, construction, and industrial machinery, it’s a trusted solution for optimising hydraulic system performan
Tech Specs
| Parameter | Description | Metric | Imperial |
| Maximum pressure | Port P, A/B continuous with PVS end plate | 300 bar | 4351 psi |
| Port P, A/B continuous with PVSI end plate | 350 bar | 5075 psi | |
| Port P intermittent | 400 bar | 5800 psi | |
| Port A/B intermittent | 420 bar | 6090 psi | |
| Port T, static/dynamic | 25/40 bar | 365/580 psi | |
| Oil flow rated | Port P with PVP inlet | 140 l/min | 37 US gal/min |
| Port P with PVPM/PVPM mid inlet | 230 l/min | 61 US gal/min | |
| Port A/B with pressure compensator | 100 l/min | 26.4 US gal/min | |
| Port A/B without pressure compensator | 125 l/min | 33 US gal/min | |
| Spool travel, standard | ± 7 mm | ± 0.28 in | |
| Spool travel, float position | Proportional range | ± 4.8 mm | ± 0.19 in |
| Float position | ± 8 mm | ± 0.32 in | |
| Dead band, flow control spools | Standard | ± 1.5 mm | ± 0.06 in |
| Linear characteristic | ± 0.8 mm | ± 0.03 in | |
| Maximum internal leakage at 100 bar [1450 psi] and 21 mm²/s [102 SUS] | A/B → T, PVB without PVLP | 20 cm³/min | 1.85 in³/min |
| A/B → T, PVB with PVLP | 25 cm³/min | 2.15 in³/min | |
| Maximum internal leakage at 200 bar [2900 psi] and 21 mm²/s [102 SUS] | A/B → T, PVBZ with PO check valves | 1 cm³/min | 0.06 in³/min |
| A/B → T, PVBZ with PO check valves and PVLP | 6 cm³/min | 0.37 in³/min | |
| Oil temperature (inlet temperature) | Recommended temperature | 30 to 60 °C | 86 to 140 °F |
| Minimum temperature | -30 °C | -22 °F | |
| Maximum temperature | 90 °C | 194 °F | |
| Ambient temperature | -30 to 60 °C | -22 to 140 °F | |
| Oil viscosity | Operating range | 12 to 75 mm²/s | 65 to 347 SUS |
| Minimum viscosity | 4 mm²/s | 39 SUS | |
| Maximum viscosity | 460 mm²/s | 2128 SUS | |
| Filtration / maximum contamination according to ISO 4406 | 23/19/16 | ||
| Oil consumption in pilot oil reduction valve | 0.5 l/min | 0.13 US gal/min |
- Load-independent flow control:
- Oil flow to an individual function is independent of the load pressure of that function
- Oil flow to one function is independent of the load pressure of other functions
- Possible combination with the rest of the PVG family when using an interface module
- Up to 12 basic modules per PVG 32 valve group
- Reliable regulation characteristics across the entire flow range
- Load sense relief valves for A and B ports enable reduced energy loss at target pressure
- Several options for connection threads and flange mounting
- Compact design for easy installation and serviceability
- Energy-saving operation
- Low weight
The Danfoss PVG 32 is suitable for a wide range of mobile hydraulic applications, including:
Construction Equipment
Excavators, skid steer loaders, compact loaders, and backhoes
Agricultural Machinery
Tractors, sprayers, harvesters, and attachments
Material Handling Equipment
Telehandlers, small cranes, lift platforms, and utility vehicles
Municipal & Utility Vehicles
Street sweepers, waste collection trucks, and service vehicles
Forestry Equipment
Harvesters, forwarders, and log handling machinery
Special Purpose & Custom Machinery
Any application requiring modular, load-sensing hydraulic control systems
